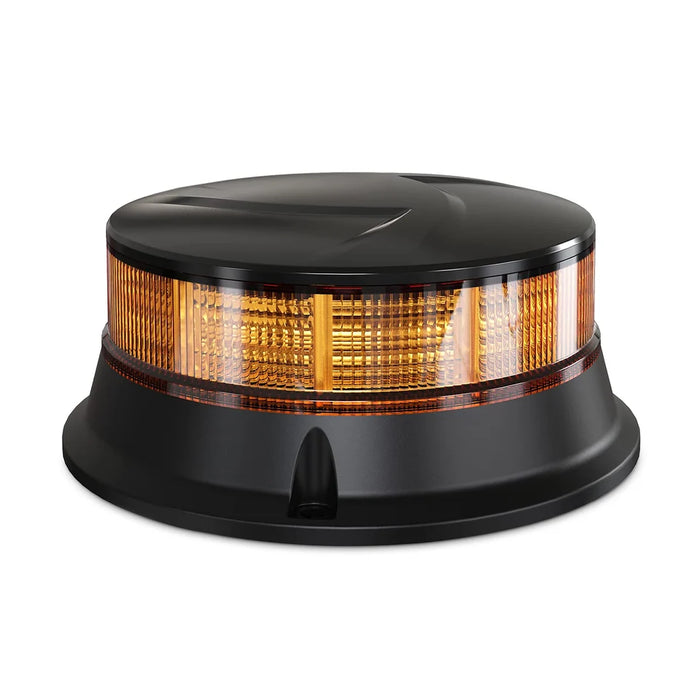

AGRIEYES Rotating Beacon Light W16S
- Description
- Fitment & Compatibility
- Features & Included
- Specifications
- Notices & Warnings
-
Improve vehicle visibility with the AGRIEYES W16S Rotating Beacon Light. Designed for trucks, tractors, construction equipment, snowplows, buses, and other utility vehicles, this compact LED beacon provides 360° warning visibility with multiple selectable flash and rotating patterns.
The W16S features 30 high-intensity LEDs and 7 selectable lighting modes, including single, double, and triple flash patterns as well as clockwise and counterclockwise rotating patterns. The memory function allows the light to retain the selected mode for convenient operation.
Built with a durable ABS housing and clear polycarbonate (PC) lens, the beacon is rated IP67 for protection against dust and water. The permanent screw-mount design provides a secure installation for vehicles where a fixed warning light is preferred.
The light operates on 12–24V DC vehicle power and uses a wired connection with separate power and mode controls. Its compact 4.2-inch design provides a practical warning-light solution without taking up significant mounting space.
-
Compatible With:
- Semi-trucks and commercial trucks
- Trucks and construction vehicles
- Tractors and agricultural equipment
- Snowplows and snow-removal equipment
- School buses and service vehicles
- Golf carts and utility vehicles
- UTVs and similar off-road equipment
- Vehicles and equipment with compatible 12–24V DC electrical systems
Mounting: The W16S uses a screw-mount base for fixed installation. Select a suitable mounting location and route the wiring safely before connecting the light to the vehicle's electrical system.
-
Features:
- 4.2-inch compact beacon design
- Permanent screw-mount installation
- 30 high-intensity LEDs
- 360° warning visibility
- 7 selectable flashing and rotating modes
- Single, double, and triple flash patterns
- Clockwise and counterclockwise rotating patterns
- Memory function retains the selected lighting mode
- 19W power consumption
- 12–24V DC operation
- IP67 water and dust resistance
- Durable ABS housing with clear PC lens
- Wired connection with separate power and mode controls
Package Includes:
- 1 × AGRIEYES W16S Rotating Beacon Light
- 1 × Screw Mounting Hardware Kit
-
Product Type LED Rotating Beacon Light Model W16S Size 4.2 in. (10.8 cm) LED Quantity 30 High-Intensity LEDs Lighting Modes 7 Flashing & Rotating Modes Voltage 12–24V DC Power 19W Mounting Type Permanent Screw Mount Water & Dust Resistance IP67 Housing Material ABS Lens Material Polycarbonate (PC) Dimensions (L × W × H) 4.25 × 4.25 × 1.85 in. (10.8 × 10.8 × 4.7 cm) Weight Approx. 0.62 lb (0.28 kg) Wire Length 1.6 ft. (0.5 m) Service Life 50,000+ Hours -
- Inspect the beacon, mounting hardware, and wiring before each use. Do not operate the light if any component is damaged.
- Install the beacon securely using the supplied mounting hardware and a suitable mounting surface.
- Ensure the mounting location can support the light and does not interfere with vehicle operation, visibility, or other equipment.
- Disconnect vehicle power before performing electrical installation or wiring modifications.
- Follow the vehicle manufacturer's electrical requirements and recommended wiring practices.
- Route and secure the wiring away from sharp edges, moving components, excessive heat, and areas where the wiring could be pinched or damaged.
- Do not place the beacon where it obstructs the driver's view or interferes with required vehicle lighting.
- Do not rely on the beacon as a substitute for legally required vehicle lighting, warning devices, or safety equipment.
- Verify applicable federal, state, and local regulations before operating warning or beacon lights on public roads.
- Although the beacon is IP67 rated, ensure all electrical connections are properly protected from water and environmental exposure.
⚠ WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov.
