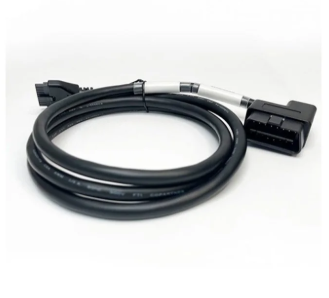

ELD Cables: 16 Pin Light / Medium Duty Cable for Pick up trucks, Box trucks and Vans
- Description
- Fitment & Compatibility
- Features & Installation
- Specifications
-
ELD Cables: 16-Pin Light / Medium-Duty Cable
The INA Equipment 16-Pin ELD Cable is designed for connecting compatible Electronic Logging Devices (ELDs) to light- and medium-duty vehicles equipped with a standard 16-pin OBD-II diagnostic connection.
This cable is a practical solution for pickup trucks, box trucks, vans, and other light- or medium-duty commercial vehicles that require an ELD connection through the vehicle's diagnostic port. Its plug-and-play design provides a straightforward connection without cutting or modifying the vehicle's factory wiring.
The cable features a durable harness and vehicle-side 16-pin OBD-II connector for dependable use in commercial vehicle and fleet applications.
Important: This product is a cable only. The ELD device and vehicle are not included.
-
Vehicle Fitment & Compatibility
The INA Equipment 16-Pin Light / Medium-Duty ELD Cable is intended for vehicles equipped with a compatible 16-pin OBD-II diagnostic port.
Compatible Applications:
- ✓ Pickup trucks
- ✓ Box trucks
- ✓ Vans
- ✓ Light-duty commercial vehicles
- ✓ Medium-duty commercial vehicles with compatible 16-pin OBD-II ports
- ✓ ELD installations
- ✓ Fleet and telematics applications
Typical Vehicle Applications:
- Pickup Trucks: Light-duty pickups equipped with a compatible 16-pin OBD-II port
- Box Trucks: Light- and medium-duty delivery trucks with the compatible diagnostic connection
- Vans: Commercial vans equipped with a compatible 16-pin OBD-II connection
Important: The presence of a 16-pin connector alone does not guarantee compatibility with every ELD. Verify that the cable connector and pin configuration are compatible with your ELD before ordering.
-
Key Features
- ✓ 16-pin OBD-II vehicle connection
- ✓ Designed for light- and medium-duty vehicles
- ✓ Ideal for pickup trucks, box trucks, and vans
- ✓ Designed for compatible ELD installations
- ✓ Plug-and-play connection
- ✓ No cutting or splicing of factory wiring required
- ✓ Durable cable construction
- ✓ Suitable for commercial and fleet applications
Installation
Installation is designed to be simple and requires no modification to the vehicle's factory wiring harness.
- 1. Locate the diagnostic port: Find the vehicle's compatible 16-pin OBD-II diagnostic connection.
- 2. Connect the cable: Plug the vehicle-side connector securely into the diagnostic port.
- 3. Connect the ELD: Connect the ELD device to the corresponding connector on the cable.
- 4. Secure the cable: Route the cable away from pedals, moving components, excessive heat, and areas where it may be pinched or damaged.
Note: Always follow the installation instructions supplied with the ELD being installed. Confirm connector compatibility before connecting the device.
Designed for Light & Medium-Duty ELD Applications
The 16-pin OBD-II connection is commonly used on smaller commercial vehicles and pickup trucks. This cable provides a convenient connection between the vehicle's diagnostic port and a compatible ELD or electronic logging system.
-
Product Specifications
- Brand: INA Equipment
- Product Type: ELD Cable
- Vehicle Connector: 16-Pin OBD-II
- Vehicle Class: Light / Medium Duty
- Vehicle Applications: Pickup trucks, box trucks, vans, and compatible commercial vehicles
- Primary Application: Electronic Logging Device (ELD) connection
- Installation: Plug-and-play
- Wiring Modification: No cutting or splicing required for standard installation
- Cable Type: Vehicle diagnostic / ELD connection cable
- Package Includes: 1 × 16-Pin Light / Medium-Duty ELD Cable
Compatibility Notice: This cable is intended for compatible 16-pin OBD-II light- and medium-duty vehicle applications. Verify the vehicle diagnostic connector and ELD connector before ordering.
