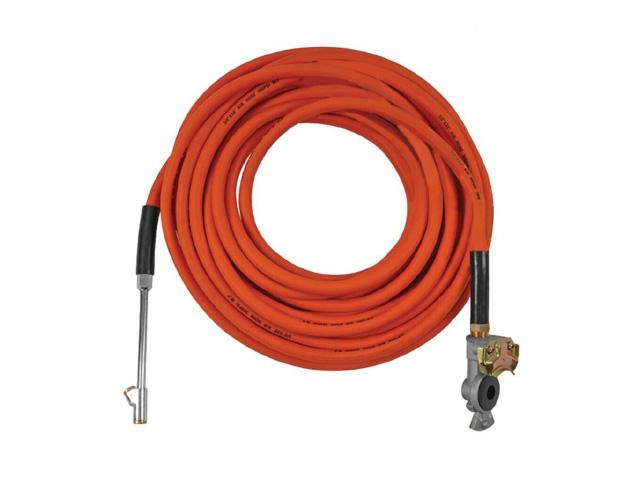

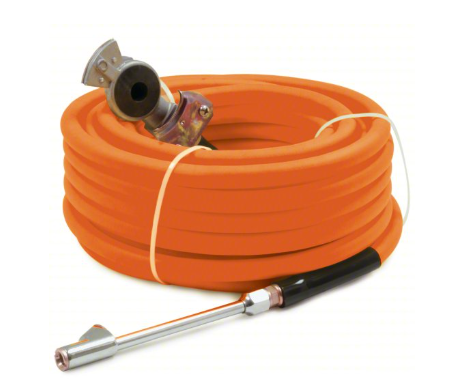

Inflate truck tires and handle compressed-air cleaning tasks with the INA Equipment Inflator & Blow Gun Kit with Gladhand and 50 ft Air Line. Designed for heavy-duty truck applications, this complete kit connects to a compatible truck air system through the universal gladhand and provides a 50 ft reach for servicing tires around the tractor and trailer.
STRAIGHT-ON CHUCK FOR INNER DUAL TIRES: The included dual-foot air chuck features a straight-on foot as well as an angled/reverse-angle foot, giving you more flexibility when accessing different tire valve positions. The straight-on configuration is especially useful for reaching the valve stem on inner dual tires of semi-trucks, where a conventional angled-only chuck can be difficult to position.
This versatile design gives you both straight-on and angled access from the same inflator, while the 50 ft air line provides ample reach around large commercial vehicles. The included blow gun adds a convenient compressed-air option for removing dust, dirt, and debris from suitable surfaces.
-
Application: Designed for tire inflation and compressed-air cleaning applications on heavy-duty trucks and trailers equipped with a compatible onboard air system.
- Suitable for semi-trucks, tractors, and trailers
- Designed for heavy-duty truck tire inflation
- Straight-on chuck provides easier access to inner dual tire valve stems
- Angled/reverse-angle chuck provides an alternative valve access position
- 50 ft hose provides extended reach around tractors and trailers
- Universal gladhand connects to compatible truck air systems
Compatibility: Designed for use with compatible heavy-duty truck air systems. Verify the vehicle's gladhand connection and air-system requirements before use.
-
- Dual-Foot Air Chuck: Provides both straight-on and angled/reverse-angle access for greater flexibility when inflating truck tires.
- Straight-On Access: Makes it easier to reach valve stems on hard-to-access inner dual tires.
- Angled/Reverse-Angle Access: Provides an alternative approach for valve stems where an angled connection is more convenient.
- 50 ft Heavy-Duty Air Line: Provides extended reach for servicing tires around large tractors and trailers.
- Universal Gladhand: Connects the kit to a compatible truck onboard air system.
- Blow Gun Included: Allows compressed air to be used for cleaning suitable surfaces and removing dirt and debris.
- Complete Service Kit: Combines tire inflation and compressed-air cleaning functions in one convenient setup.
Included:
- 1 × 50 ft Heavy-Duty Air Hose
- 1 × Universal Gladhand
- 1 × Dual-Foot Tire Air Chuck with Straight-On and Angled/Reverse-Angle Access
- 1 × Blow Gun
-
Product Type Truck Tire Inflator & Blow Gun Kit Hose Length 50 ft Hose Size 3/8" x 50 ft Hose Material PVC Hose Working Pressure 300 PSI Fittings 1/4" NPT Gladhand Universal Gladhand Air Chuck Type Dual-Foot Air Chuck Chuck Access Straight-On & Angled/Reverse-Angle Primary Application Heavy-Duty Truck Tire Inflation & Compressed-Air Cleaning Kit Contents 50 ft Air Hose, Universal Gladhand, Dual-Foot Air Chuck & Blow Gun -
Important: This kit uses compressed air from a compatible vehicle air system. Follow the vehicle manufacturer's recommendations and all applicable tire-service safety procedures.
- Tire Inflation Safety: Always use appropriate tire-inflation procedures and stay clear of potential tire or rim failure hazards.
- Never exceed the maximum rated pressure of the hose, fittings, chuck, blow gun, gladhand, or any other component in the air system.
- Inspect the hose, fittings, gladhand, chuck, and blow gun before every use. Do not use damaged, cracked, worn, or leaking components.
- Make sure the air chuck is properly seated on the tire valve before supplying compressed air.
- Use appropriate safety equipment and follow applicable manufacturer and regulatory requirements when servicing commercial vehicle tires.
- Blow Gun: Never direct compressed air toward people, animals, skin, eyes, or other body parts. Wear appropriate eye protection when using compressed air for cleaning.
- Keep the air hose away from sharp edges, hot surfaces, moving components, and other conditions that could damage the hose.
- Verify that the universal gladhand is properly connected and secured before supplying air.
- This product does not include a tire pressure gauge. Use a suitable pressure gauge to verify tire pressure.
